WhisPower System
FOTILE's WhisPower Technology is able to capture a higher CFM than actually published by achieving the Venturi effect, which is created with our Capture Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.
WhisPower System
Due to our WhisPower Technology, FOTILE is able to capture a higher CFM than actually published by achieving the Venturi effect created with our Capture
Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal
WhisPower motors.
Extra-wide Fume Inlet ensures even suction pressure at every angle
90-degree Auto Open Fume Capture Shield. It prevents the smoke from spreading effectively and protects you against harm.
Extra-wide Fume Inlet ensures even suction pressure at every angle
Capture Shield
Super-large Coverage Area easily covers all the burners on your cooktop
Extra-wide Fume Inlet ensures even suction pressure at every angle.
Super-large Coverage Area easily covers all the burners on your cooktop.
Super-large Coverage Area easily covers all the burners on your cooktop
Extra-wide Fume Inlet ensures even suction pressure at every angle.Super-large Coverage Area easily covers all the burners on your cooktop.
Specifications
| Model: | UQS3001 |
|---|---|
| Certification | ETL, HVI, CEC |
| Product Dimensions (W x D x H): | 29 13/16"" (757mm)×22 1/16"" (560mm)×8 5/16"" (210mm)（Capture Shield Included) |
| Power Supply | 120V/60Hz |
| Max Static Pressure(Pa) | 340Pa |
| Speed Setting | 3 |
| CFM(HVI) | Vertical：240/370/460 Horizontal：240/370/470 |
| Max. EQUIV.CFM | 800 |
*FOTILE Equivalent CFM is a higher CFM rating due to our filter-less technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Affect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (6- 7.2 Sq Ft) and achieve a 95% oil filtration rate, and 98% odor elimination rate, leaving your kitchen smoke free and smelling fresh.
WhisPower System
Bionic Impeller features aerodynamic technologies to cut down on friction and noise, assuring extremely powerful and quiet operation.
Patented 3.0 Capture Shield Plate
WhisPower Technology by FOTILE delivers a more powerful CFM performance due to the Venturi effect we create with our Capture Shield Technology. Increased air speed and suction power capture smoke and grease in the Golden Collection Zone. The WhisPower motors separate the smoke from the grease, resulting in 94% Grease Separation Rate and 99% Smell Reduction Rate. Pixie Air Range Hood Series leaves your kitchen air smelling fresh and clean.
Design

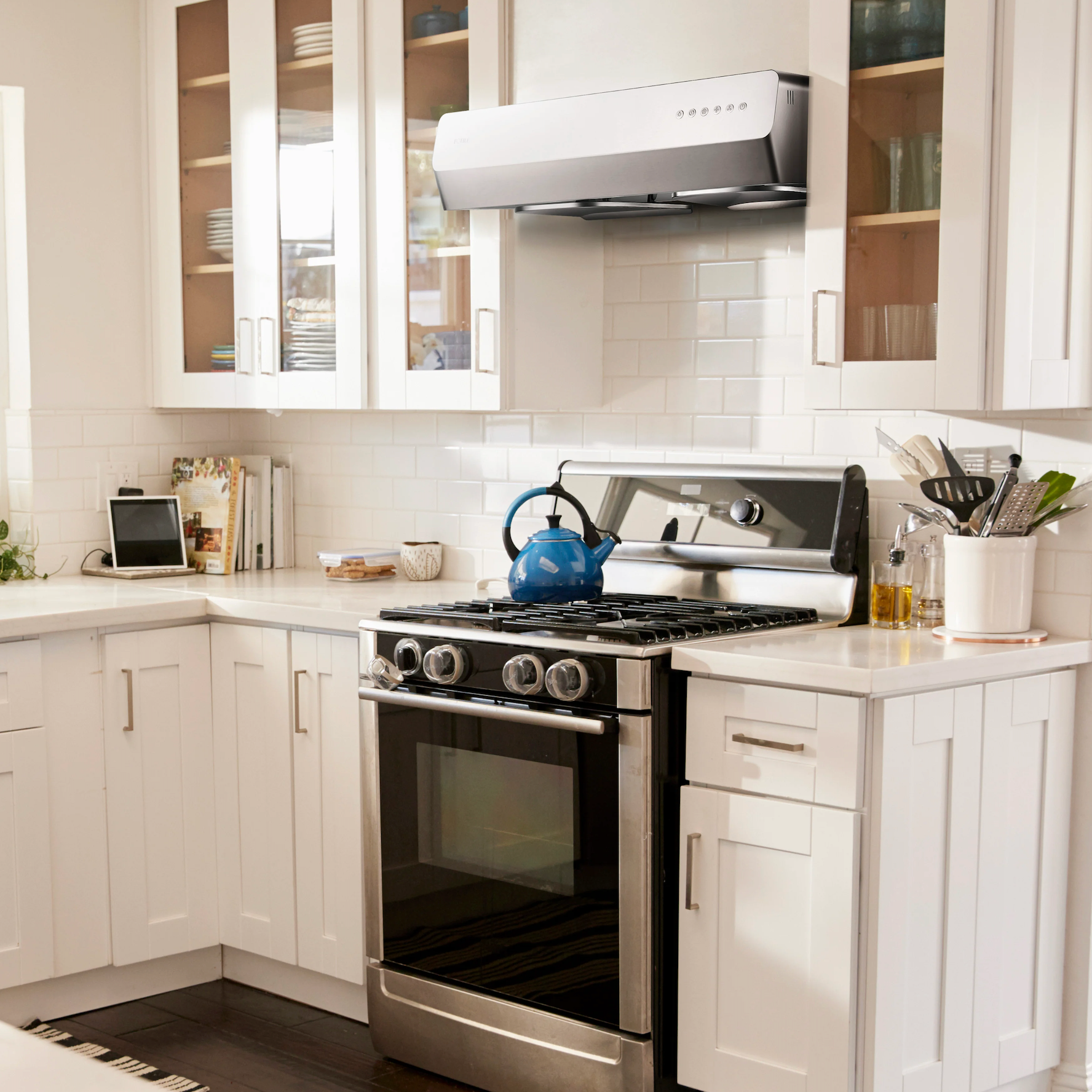

This sleek, ultra-slim line range hood not only blends seamlessly into your kitchen due to its low profile, but the classic stainless steel and modern tempered glass design, will match your other appliances in your kitchen as well.
More Features
One-Piece Capture Shield and Oil Container.Simple to clean
Minimum Noise Level: 37dB, Ultra quiet so you can enjoy conversation with friends and family
LED Lighting brightens up your cooktop so you can see the color and texture of your food while you are cooking
CAT - CFM Adjustment Technology makes you compliant with most local ordinance codes
Push Button Control
Intelligent Air Management System: Automatically detects and removes harmful gases for peace of mind.
Specifications
| Model: | UQS3001 |
|---|---|
| Certification | ETL, HVI, CEC |
| Product Dimensions (W x D x H): | 29 13/16"" (757mm)×22 1/16"" (560mm)×8 5/16"" (210mm)（Capture Shield Included) |
| Power Supply | 120V/60Hz |
| Max Static Pressure(Pa) | 340Pa |
| Speed Setting | 3 |
| CFM(HVI) | Vertical：240/370/460 Horizontal：240/370/470 |
| Max. EQUIV.CFM | 800 |
*FOTILE Equivalent CFM is a higher CFM rating due to our filter-less technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Affect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (6- 7.2 Sq Ft) and achieve a 95% oil filtration rate, and 98% odor elimination rate, leaving your kitchen smoke free and smelling fresh.
FOTILE WARRANTY POLICY For range hood purchases
Fotile is offering five years limited warranty on range hood products. Life time limited warranty on motorsFrom your purchase date, TWO (2) YEARS FULL WARRANTY ON ALL FOTILE RANGE HOOD PRODUCTS AND PARTS AND THREE (3) YEARS LIMITED WARRANTY ON ALL PARTS OF FOTILE RANGE HOOD PRODUCTS*
