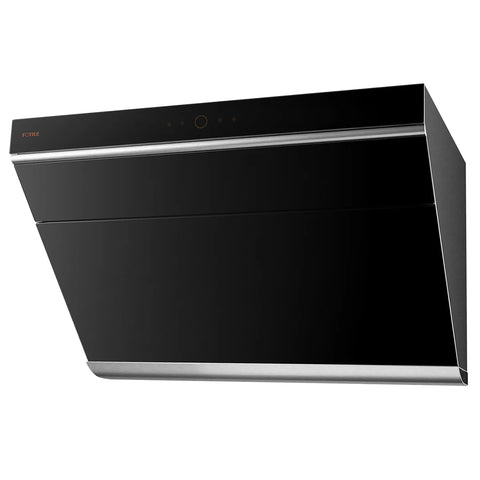

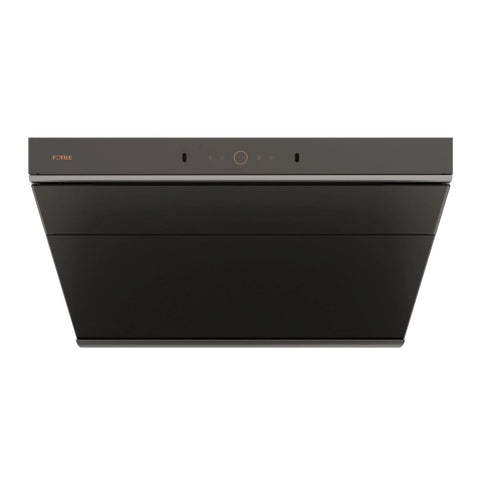

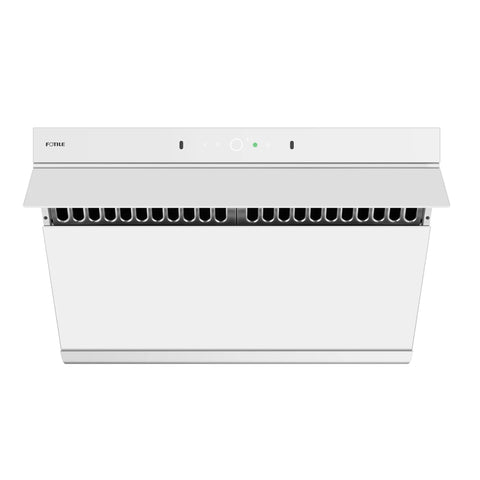

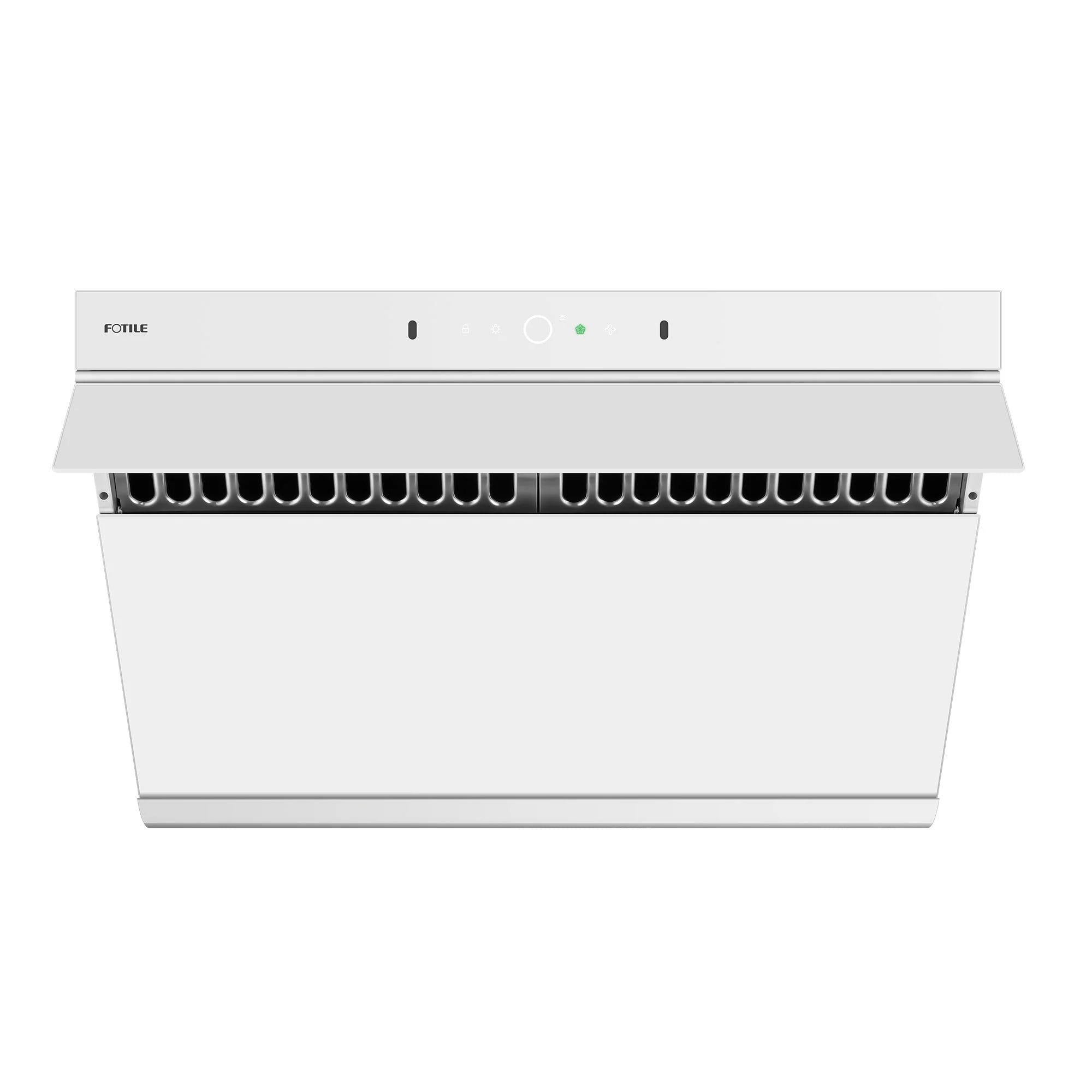

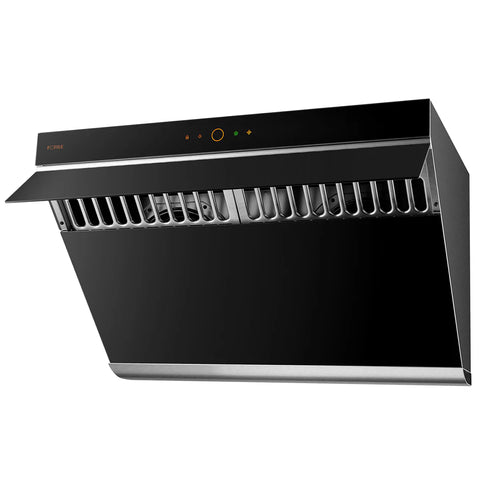

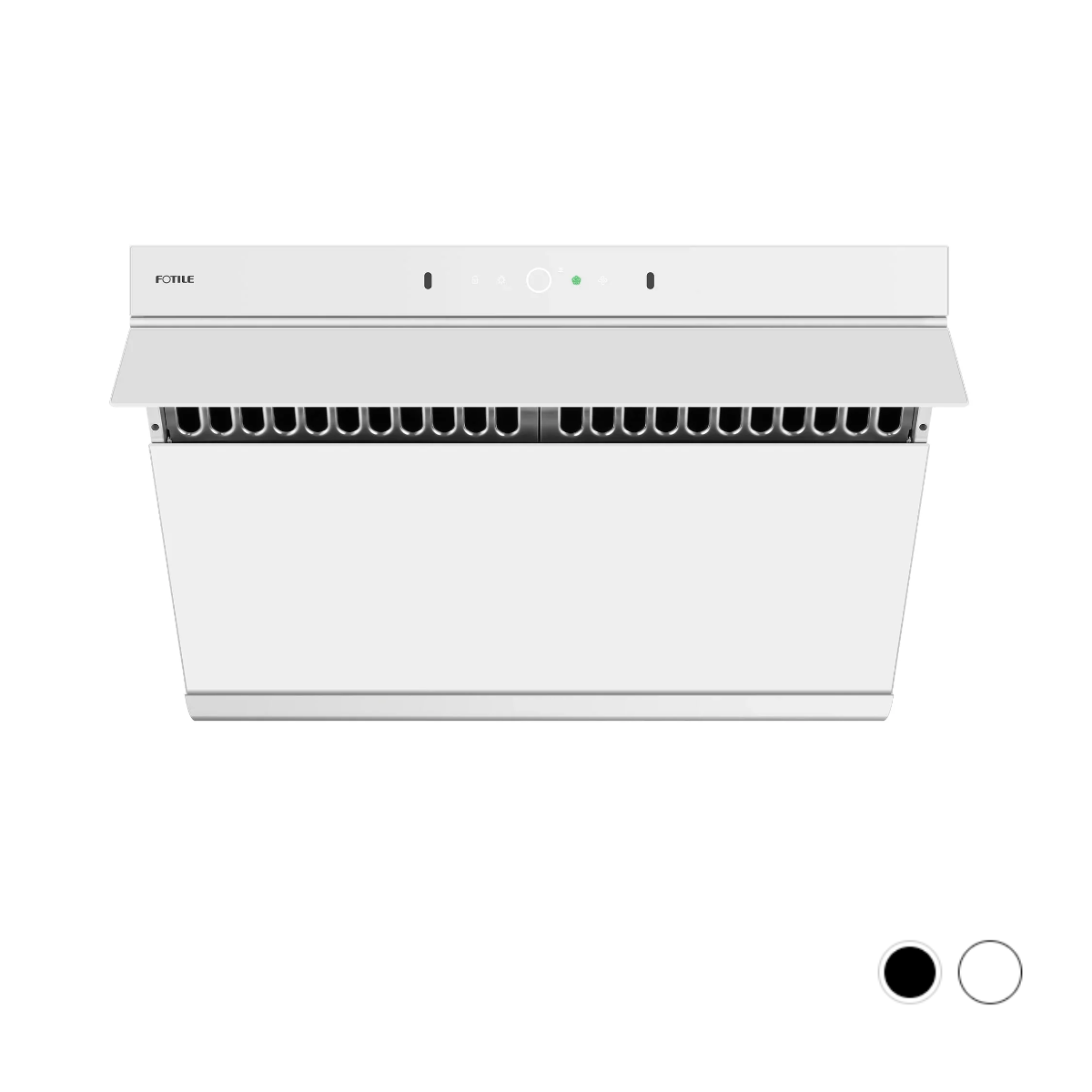

JQG7507
Product Type:
30“ Wall mount/Under cabinet Range hood
- $1,749.00
-
- $1,749.00
- Unit price
- per
- Max. EQUIV. CFM 1100
- Max Static Pressure 610Pa
- Min Noise Level 38.5dB
- 3 Speed Levels with Stir-Fry Mode
- Touch Control with Motion
- Automatic Opening Capture Shield
-
SynCook™ Function
Inclined Vent Range Hood Buying Guide
5 Key Selection Criteria
Airflow (CFM)
Opt for high airflow for open-concept kitchens & heavy oil cooking
Static Pressure
High static pressure recommended for long, multi-bend ductwork & high-rise apartments
Noise Level
Low-noise models preferred for combined kitchen-dining-living spaces
Control Panel
Choose smart control systems for premium, convenient experience
Cleaning Convenience
Easy disassembly recommended for frequent deep cleaning
Quick Selection Reference
Premium Flagship Model
JQ15
30″/36″ Under-cabinet & Wall-mounted
● ○ ●
Noise range: 37.3–55.9 dBUltra-quiet at low speed
★ ★ ★ ★ ★
Max static pressure: 1,030 PaSmooth exhaust with complex duct systems
★ ★ ★ ★ ★
Noise range: 37.3–55.9 dBUltra-quiet at low speed
★ ★ ★ ★ ★
Remote control + voice control + wave gesture + touch controlFull premium smart functions
★ ★ ★ ★ ★
Removable segmented grease filters, dishwasher-safe
★ ★ ★ ★ ★
Top-tier performance & fully integrated smart featuresNo. 1 choice for open kitchen-dining-living integrated homes
Top Rated Popular Pick
JQ07
30″ Under-cabinet & Wall-mounted
● ○
Max equivalent airflow: 1,100 CFM*Ideal performance for average households
★ ★ ★ ★
Max static pressure: 610 PaSuitable for standard floor duct conditions
★ ★ ★ ★
Noise range: 38.5–57 dBBalanced noise & performance
★ ★ ★
Wave gesture + touch controlConvenient gesture operation
★ ★ ★ ★
Foldable integrated removable filters, dishwasher-safe
★ ★ ★ ★
Balanced performance with outstanding user reviewsReliable balance choice with no compromises
Timeless Classic
JQ01
30″ Under-cabinet & Wall-mounted
●
Max equivalent airflow: 850 CFM*Perfect for small kitchens & rental units
★ ★ ★
Max static pressure: 400 PaDesigned for low-rise apartments
★ ★ ★
Noise range: 39–54.3 dBQuiet operation at high speed
★ ★ ★ ★
Touch controlClear interface, anti-misoperation
★ ★ ★
Foldable integrated removable filters, dishwasher-safe
★ ★ ★ ★
Budget-friendly solution for compact kitchens & rental properties
High Value-for-Money Option
JQ02
30″ Under-cabinet & Wall-mounted
●
Max equivalent airflow: 850 CFM*Perfect for small kitchens & rental units
★ ★ ★
Max static pressure: 400 PaDesigned for low-rise apartments
★ ★ ★
Noise range: 39–54.3 dBQuiet operation at high speed
★ ★ ★
Mechanical buttonsFixed deflector
★ ★
One-piece removable filters, dishwasher-safe
★ ★ ★
Budget-friendly solution for compact kitchens & rental properties
Inclined Vent Range Hood Buying Guide
Premium Flagship
Top Rated Popular
Timeless
High Value-for-Money Option
5 Key Selection Criteria
JQ15
30”/36” Under-cabinet & Wall-mounted
● ○ ●
JQ07
30” Under-cabinet & Wall-mounted
● ○
JQ01
30” Under-cabinet & Wall-mounted
●
JQ02
30” Under-cabinet & Wall-mounted
●
Airflow (CFM)
Opt for high airflow for open-concept kitchens & heavy oil cooking
Max equivalent airflow: 1,250CFM* Easily handles high-heat stir-frying
★ ★ ★ ★ ★
Max equivalent airflow: 1,100CFM* Ideal performance for average households
★ ★ ★ ★
Max equivalent airflow: 850CFM* Perfect for small kitchens & rental units
★ ★ ★
Max equivalent airflow: 850CFM* Perfect for small kitchens & rental units
★ ★ ★
Static Pressure
High static pressure recommended for long, multi-bend ductwork & high-rise apartments
Max static pressure: 1,030 Pa Smooth exhaust with complex duct systems
★ ★ ★ ★ ★
Max static pressure: 610 Pa Suitable for standard floor duct conditions
★ ★ ★ ★
Max static pressure: 400 Pa Designed for low-rise apartments
★ ★ ★
Max static pressure: 400 Pa Designed for low-rise apartments
★ ★ ★
Noise Level
Low-noise models preferred for combined kitchen-dining-living spaces
Noise range: 37.3–55.9 dB Ultra-quiet at low speed
★ ★ ★ ★ ★
Noise range: 38.5–57 dB Balanced noise & performance
★ ★ ★
Noise range: 39–54.3dB Quiet operation at high speed
★ ★ ★ ★
Noise range: 39–54.3dB Quiet operation at high speed
★ ★ ★
Control Panel
Choose smart control systems for premium, convenient experience
Remote control + voice control + wave gesture + touch control Full premium smart functions
★ ★ ★ ★ ★
Wave gesture + touch control Convenient gesture operation
★ ★ ★ ★
Touch control Clear interface, anti-misoperation
★ ★ ★
Mechanical buttons Fixed deflecter
★ ★
Cleaning Convenience
Easy disassembly recommended for frequent deep cleaning
Removable segmented grease filters, dishwasher-safe
★ ★ ★ ★ ★
Foldable integrated removable filters, dishwasher-safe
★ ★ ★ ★
Foldable integrated removable filters, dishwasher-safe
★ ★ ★ ★
One-piece removable filters, dishwasher-safe
★ ★ ★
Quick Selection Reference
Top-tier performance & fully integrated smart features NO.1 choice for open kitchen-dining-living integrated homes
Balanced performance with outstanding user reviews Reliable balance choice with no compromises
Budget-friendly solution for compact kitchens & rental properties
Budget-friendly solution for compact kitchens & rental properties
WhisPower System

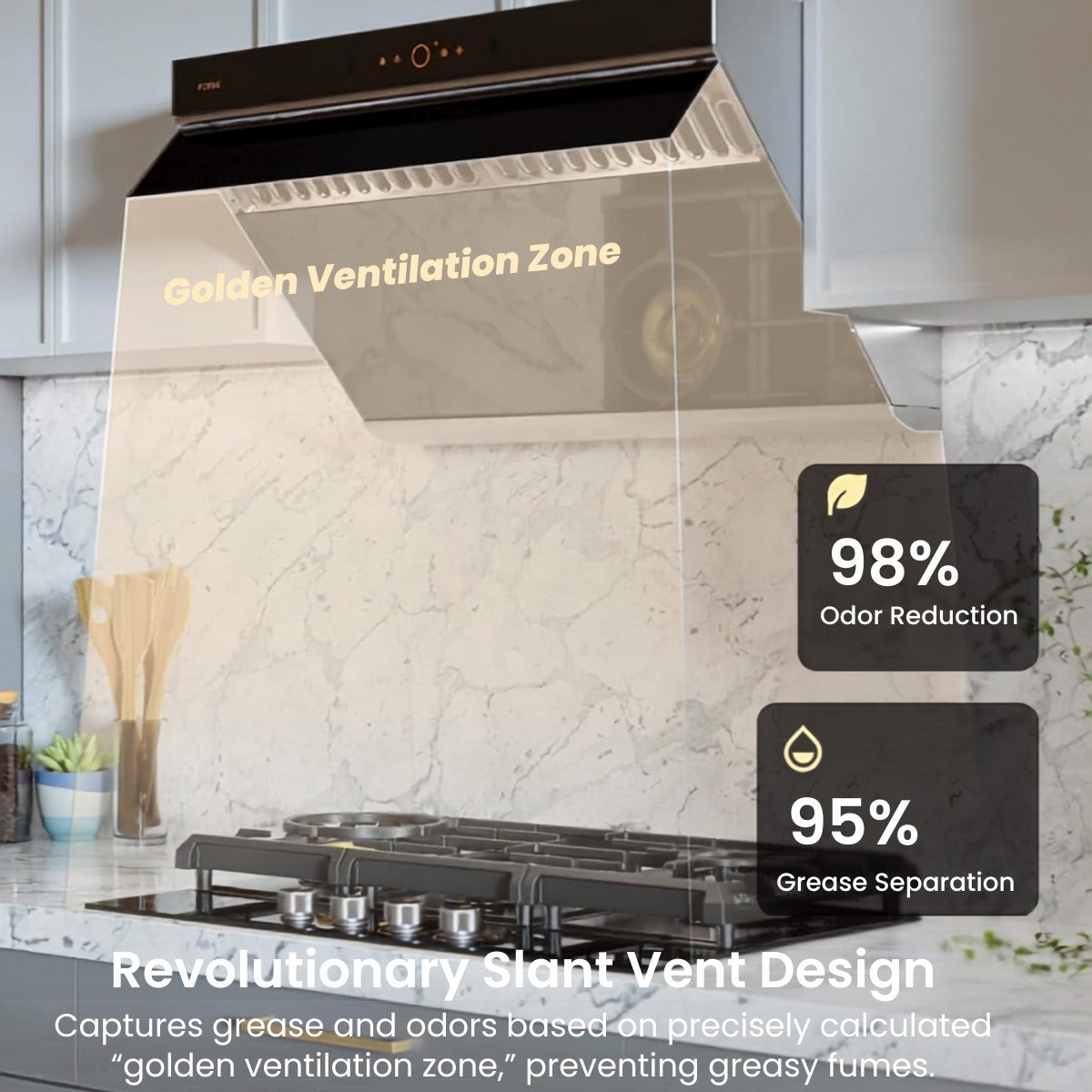

FOTILE's WhisPower Technology is able to capture a higher CFM than actually published by achieving the Venturi effect, which is created with our Capture Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.
WhisPower System
Due to our WhisPower Technology, FOTILE is able to capture a higher CFM than actually published by achieving the Venturi effect created with our Capture
Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal
WhisPower motors.
Extra-wide Fume Inlet ensures even suction pressure at every angle
90-degree Auto Open Fume Capture Shield. It prevents the smoke from spreading effectively and protects you against harm.
Extra-wide Fume Inlet ensures even suction pressure at every angle
Capture Shield
Super-large Coverage Area easily covers all the burners on your cooktop
Extra-wide Fume Inlet ensures even suction pressure at every angle.
Super-large Coverage Area easily covers all the burners on your cooktop.
Super-large Coverage Area easily covers all the burners on your cooktop
Extra-wide Fume Inlet ensures even suction pressure at every angle.Super-large Coverage Area easily covers all the burners on your cooktop.
Specifications
| Model: | JQG7507/JQG7507-W/JQG7507-Y |
|---|---|
| Certification | ETL, FCC, HVI, CEC |
| Product Dimensions (W x D x H): | 29 7/8"(758mm)×18 7/16"(467mm)×17 7/16"(442mm) |
| Power Supply | 120V/60Hz |
| Max Static Pressure(Pa) | 610Pa |
| Speed Setting | 4 |
| CFM(HVI) | 238/421/544/638 |
| Max. EQUIV.CFM | 1100 |
*FOTILE Equivalent CFM is a higher CFM rating due to our filter-less technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Affect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (6- 7.2 Sq Ft) and achieve a 95% oil filtration rate, and 98% odor elimination rate, leaving your kitchen smoke free and smelling fresh.
Stronger Yet Quiet
This range hood is part of FOTILE's latest Slant Vent family, offering 100 CFM more power than JQG7501 or JQG7502. Experience advanced noise reduction for whisper-quiet operation at just 38dB comparable to the tranquility of a library

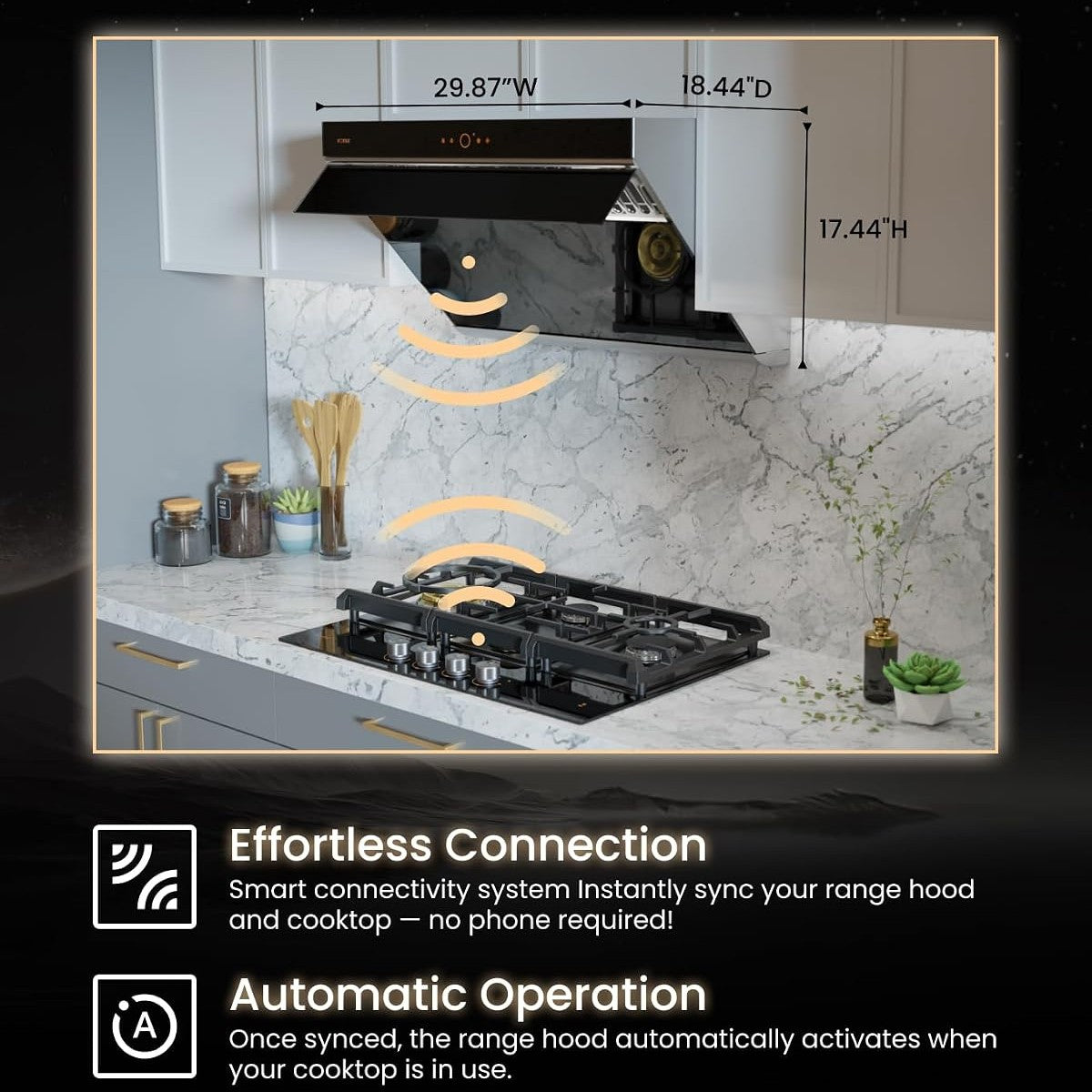

Sync Connect with Cooktops
The range hood’s automatic activation powers on with LED lights, syncing with your cooktop’s switch knob. Effortlessly control the range hood’s operation using any cooktop knob. The Slant Vent Range Hood’s simple setup addresses the common issue of forgetting to turn on the range hood.

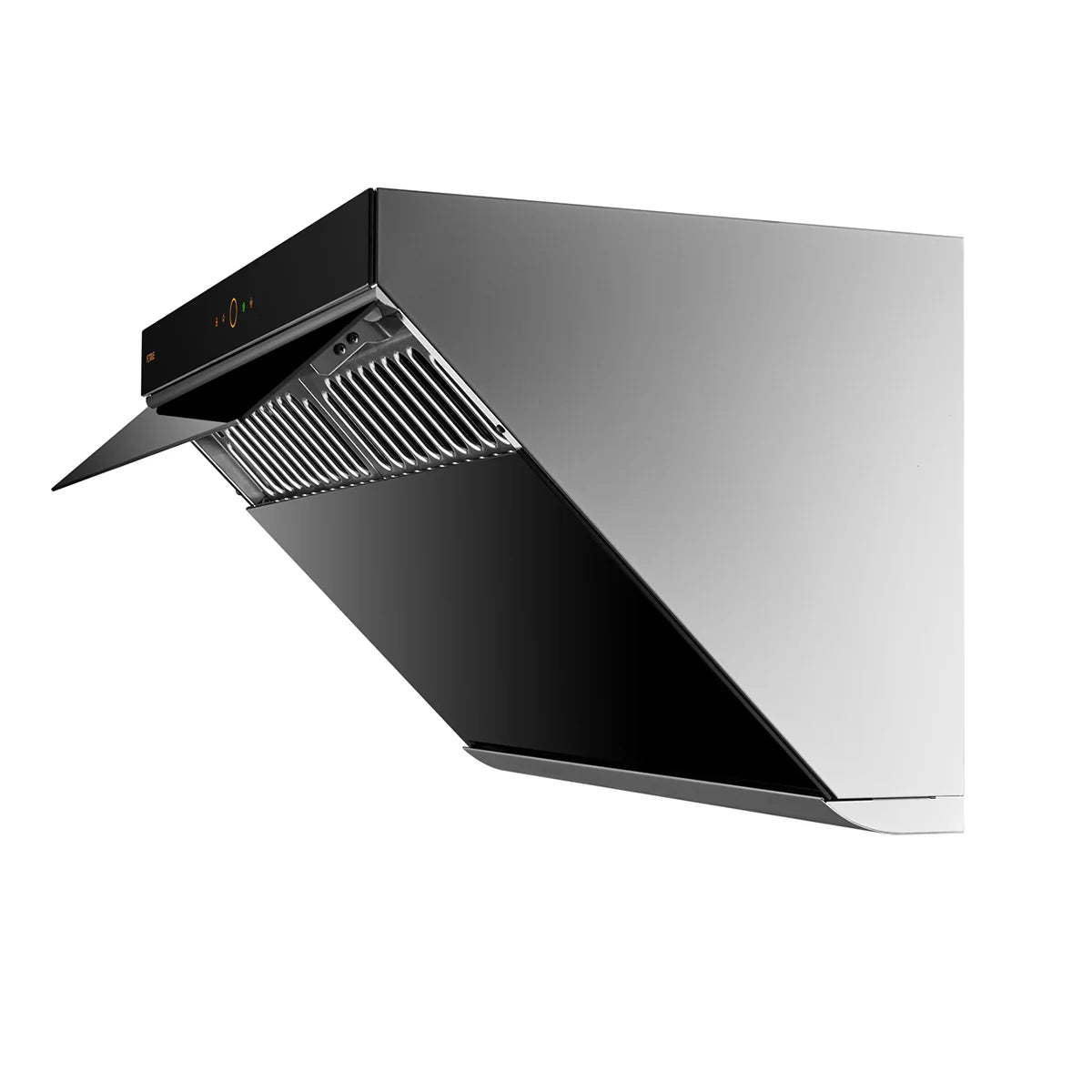

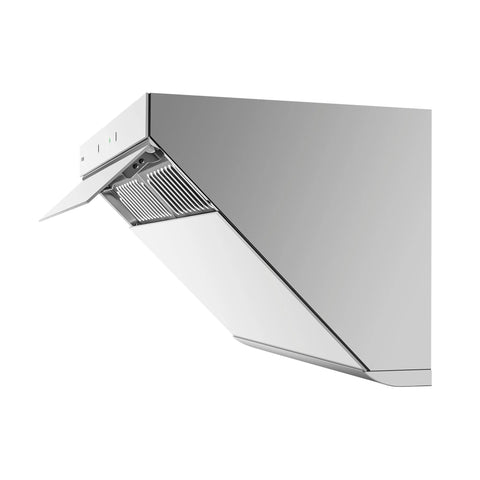

Automatic Capture Shield Structure
The 90-degree automatic open/close shield effectively contains smoke, enhancing kitchen safety.
Efficient Extraction With Stir Fry Mode
Boosted power for heavy smoke and odor cooking. Covers up to 6 sq.ft with side-to-side extraction.
More Features

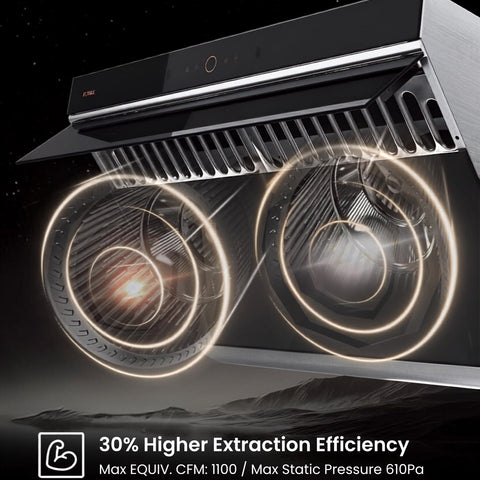

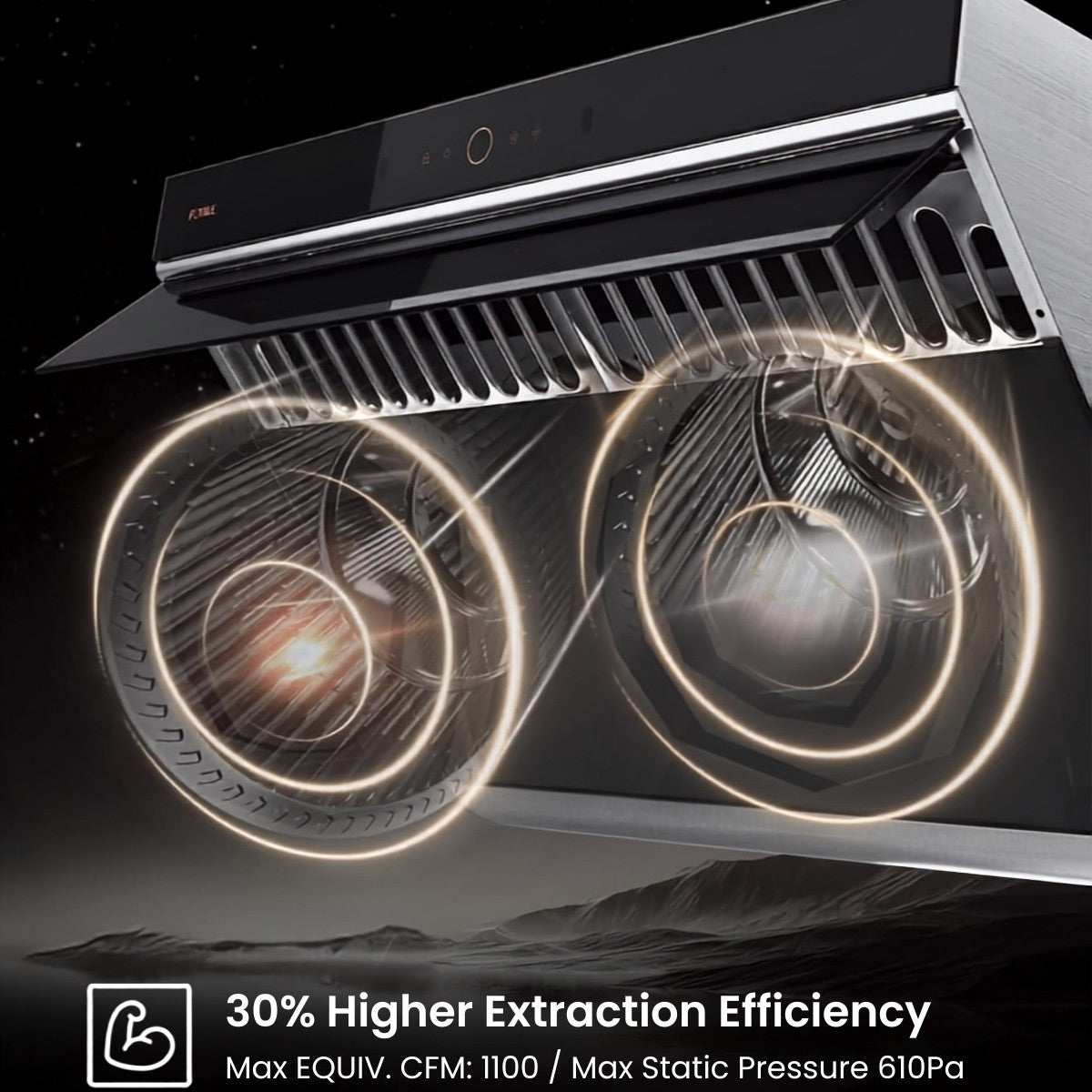

Double Centrifugal Fans ensures strong power and fluent extraction

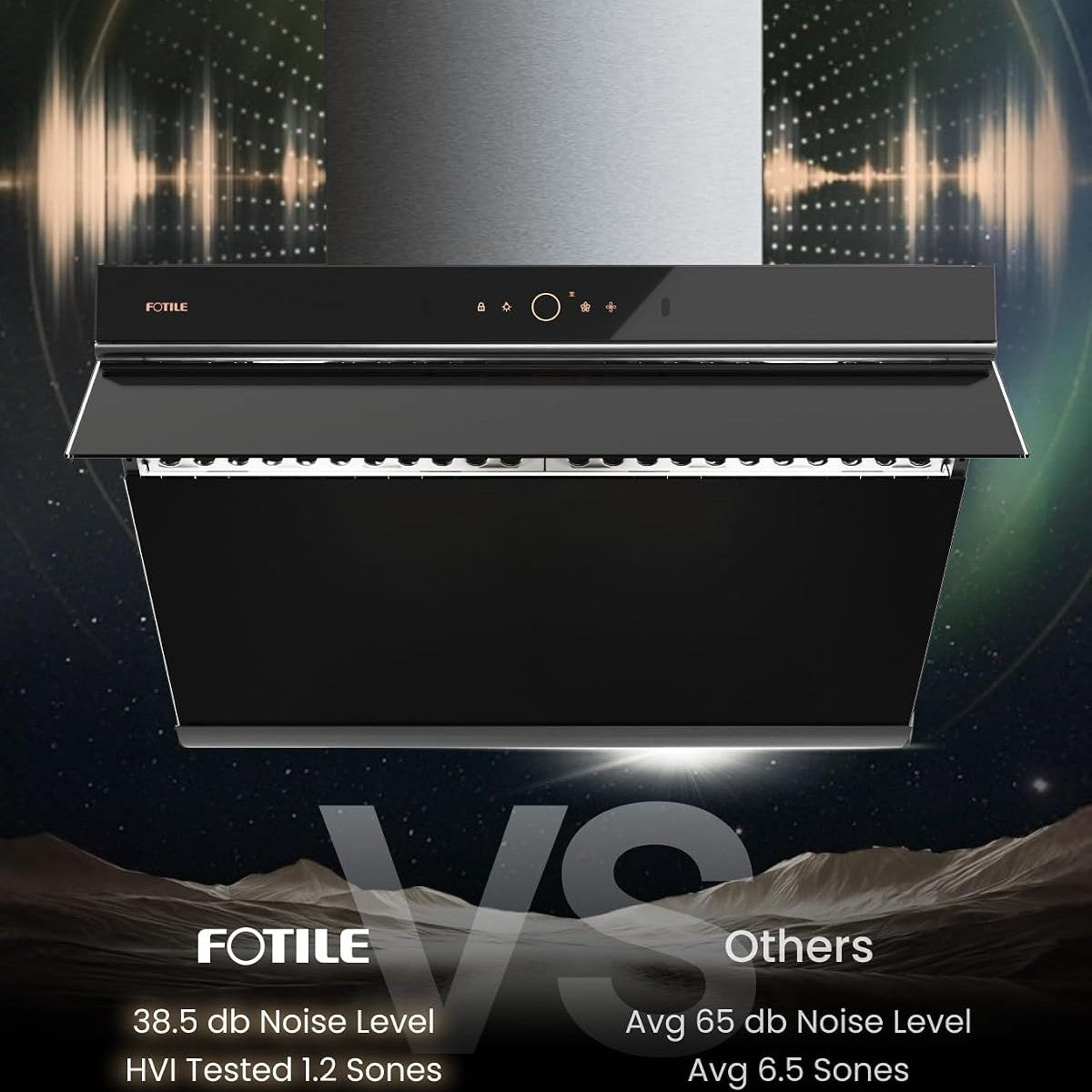

Super Quiet Operation, Lowest speed has 39dB noise level; Mid speed has 49dB; High speed has 54dB
Screen Lock Function. Allows you to clean your Range Hood without accidentally turning it on
A Delay Function lets the Range Hood work for several minutes after cooking to ensure all the smoke and odor are removed from your kitchen
Powerful Lights, light up the whole cooking area and helps you see the color of the food you are cooking
Large Grease Tray with more volume, decreases the frequency of cleaning.
Folding Oil Filter, is dishwasher safe
FOTILE WARRANTY POLICY For range hood purchases
Fotile is offering five years limited warranty on range hood products. Life time limited warranty on motorsFrom your purchase date, TWO (2) YEARS FULL WARRANTY ON ALL FOTILE RANGE HOOD PRODUCTS AND PARTS AND THREE (3) YEARS LIMITED WARRANTY ON ALL PARTS OF FOTILE RANGE HOOD PRODUCTS*
